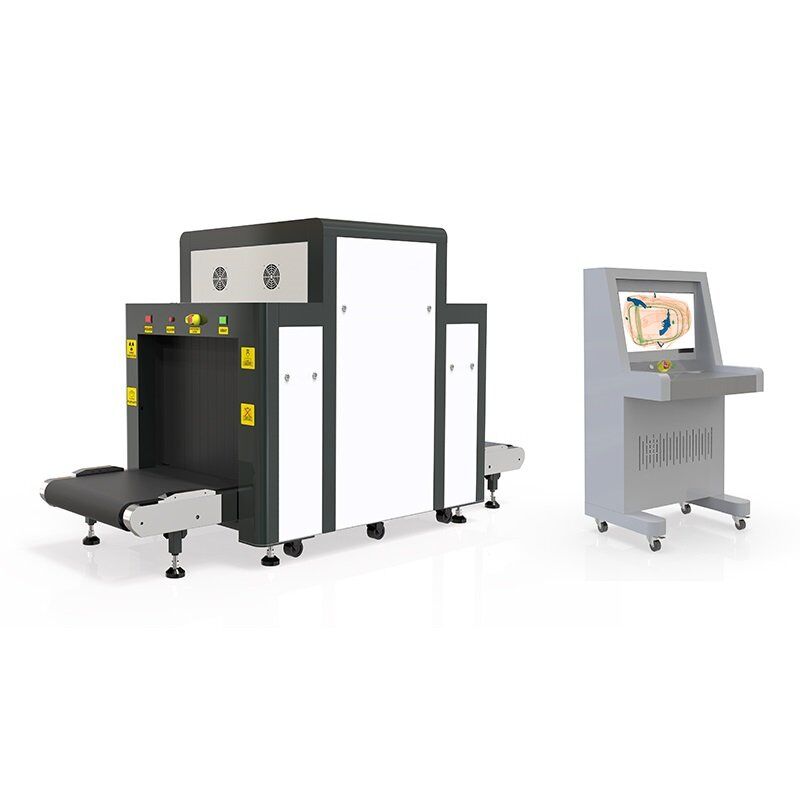

X-ray Baggage Scanner ZX 8065C

Product highlights

* Multilingual operation
* Automatic built in test and self diagnosis
* Secure access Key
* Auto archiving
* Network-Ready
* Energy saving design
* One key turn off
* Indication of the date and time
* baggage counter

Physical Specifications
Unit weight (kgs)	623
Unit size (mm)	2950(L)*1100(W)*1600(H)
after packed in wooden pallet –	2050*1180*1670 mm 1270*620*1430 mm
Gross weight (kgs)	833
General Specifications
Tunnel size(mm)	805(L)*655(W)mm
Conveyor Speed(m/s)	0.22
Conveyor height(mm)	322
Conveyor Max Load(kgs)	200
X ray dose per each inspection	Typical 2.0 μGy/h, guarantee 2.5 μGy/h
X ray leakage	Typical1.0 μGy/h, guarantee 1.5 μGy/h
Penetration	Typical 38mm, guarantee 34mm
Wire Resolution	Typical AWG38, guarantee AWG36
Penetration Resolution	Typical AWG32, guarantee AWG30
Spatial resolution:	Typical dia1.0mm,Vertical: dia1.0mm; Guarantee dia1.3mm,Vertical: dia1.3mm;
Power Consumption	0.5KVA
Noise	< 60dB
Film Safety	Guarantee ASA/ISO1600 Film
X-ray Generator (single)
Anode Voltage	160 KV
Anode power	0.5mA
Generate angle	80 degree upward
Generate direct	from top to bottom
Cooling / Duty Cycle	Oil Cooling /100%
Image System
X-ray Sensor	L-Shaped Photodiode Array (multi-energetic)  , 12bit Deep
Image Display	High resolution of 1024 * 1280 pixel; Image Grey Level: 4096
Image Enhancement	1-64times enlargement continuity, Color/BW, negative, high/low penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc.
Image Recall	All preceding images recallable, retrieval
Threat Image Projection	Inserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability
Image Archive	Up to 200,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP and other general formats
Miscellaneous Functions	Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log, system standby and stimulant training, ADS etc.
Network Applications	Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc ( Optional) .
Images process	24bit real time processing ,4colors analysis, Images displayed marked date and ID NO ,Count the number of bags
Operating Environment
Operation temperature/Humidity	0℃-45℃ / 5%-95%(non-condensing)
Storage Temperature/Humidity	-40℃to 70℃ / 5%-95%(non-condensing)
Operation Power	220VAC(±10%) 50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)
UPS	15mins, 30mins, 60mins etc, optional
Computer and other
Monitor	High Resolution Color, LCD Accord, 19.9 inch
Hard Disk	XJH-064GB (1T disk could be optional))
CPU	Intel i3-3120M @ 2.50GHz
Storage	4GB 1600MHz DDR3 Innodisk
Main board	Intel lvy Bridge – HM76 Express
