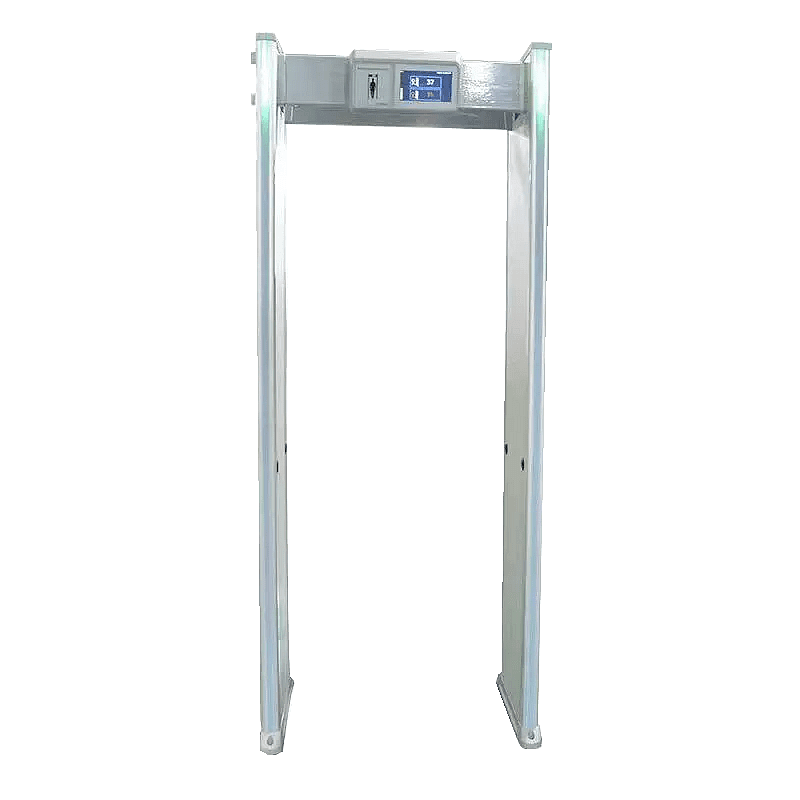

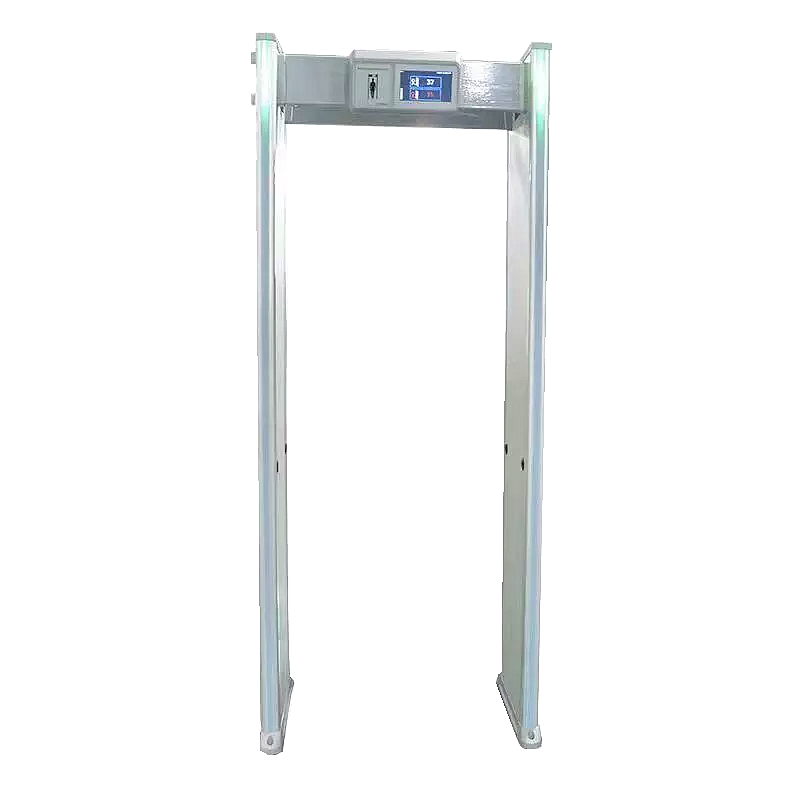

Walk Through Metal Detector ZX-1008

Additional information

Zones Number

33 zones

Display Type

Touch LED screen

Inner Frame

2000mm(H)x700mm(W)x500mm(D)

Power

AC85~264V 50/60Hz

Product Details

Product highlights

* Stable performance, 33 zones options
*Extremely high sensitivity to find even tiny threats
*Operation way: remote control
*Two LED lights bars show threats location on human body
* Sound and light alarm
*Operation way: Touch screen operation

Technical specification
Electrical current: AC85~264V    50/60Hz
Power: 10W
Work environment: -20℃  to +65℃
Gross Weight: 62 kg
Outer frame: 2200mm(H) x850mm(W)x500mm(D)
Inner frame: 2000mm(H)x700mm(W)x500mm(D)
Characteristic
Two LED light bars on both door panels: gives alarm corresponding to the height or human body.
6/12/18 Pinpoint zones to precisely identify multiple target locations from head to toe.
Advanced broadband detection technology: can detect ferrous and non-ferrous articles.
Sensitivity adjustable from Level 0 to 399
High: Can detect a clip
Low: Detect big metal articles such as: knife, gun, and copper, aluminums, zinc (more than 150g), ignoring metal in belt button, shoes.
Shock proof to avoid false alarm
Sound and light alarm
Intelligent traffic and alarm counters that calculate traffic flow and resultant alarms.
Tamper-Proof: operate program is protected by password.
Adjustable operating frequencies—eliminate the potential effects from X-ray units, radios and other electrical interference sources.
Mix distance between two Walk-thru: 0.3 meters at low sensitivity, 0.5 meters at high sensitivity
Harmless to pregnant woman and heart pacemaker
Operation way : Remote control
(Optional)Connect with computer, camera, turnstile, etc
