*Special air-drying circulation system
*With intelligent alarm
*Weather proof scanning unit(IP 68)
*Anti-fog function
*To connect anti-collision system, barrier,etc,
*To compatibly packing management solution
Features |
|

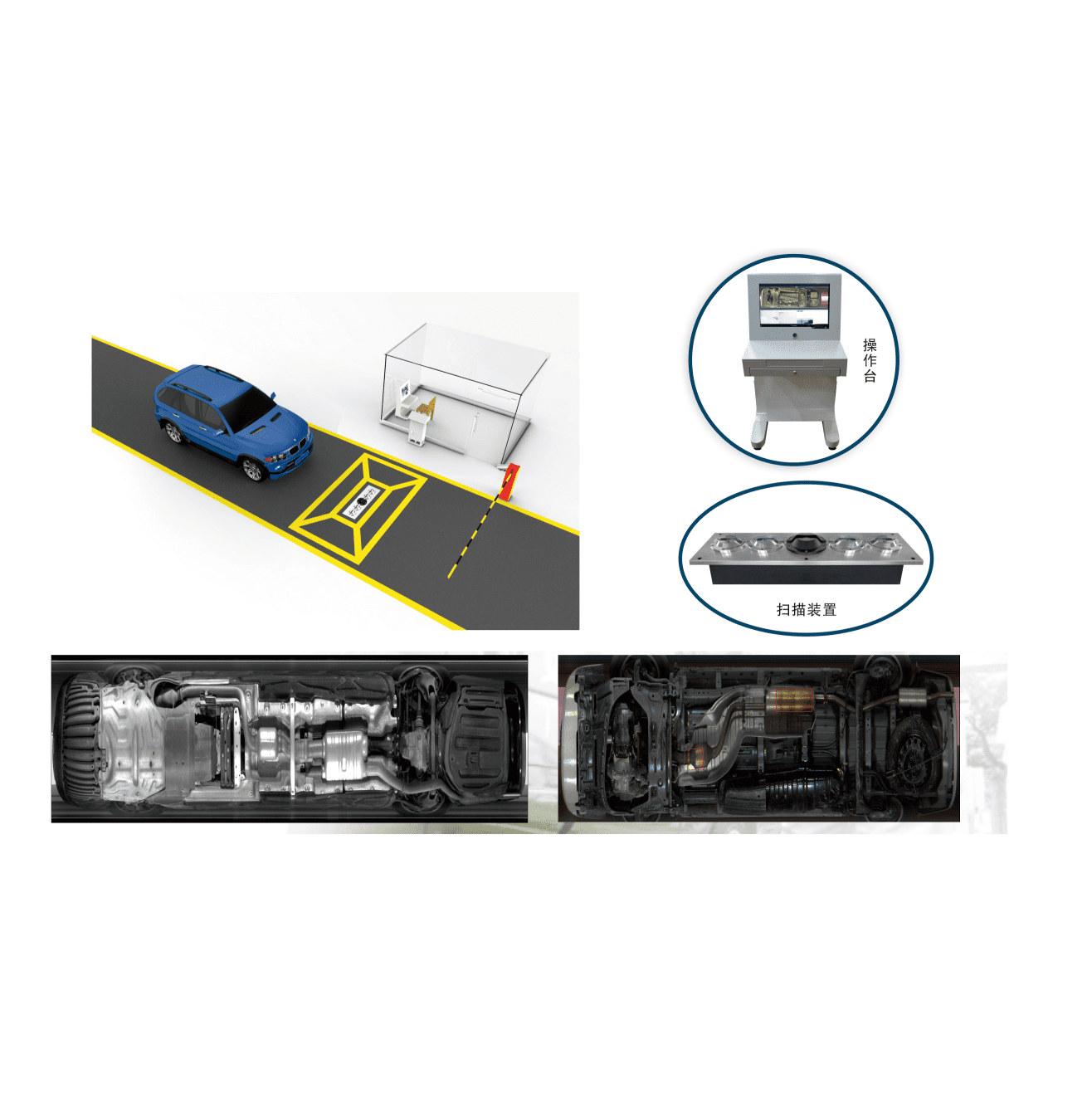

| Features | Automatic digital line scan camera, with high-resolution and clarity of the image. The complete image of under vehicle scanning, without any omissions, and the image is clear, complete, no distortion, can be clearly observed that the object is not less than 2mm in diameter. Preparation of inspection processes to meet a variety of on-site needs. Multiple scene image monitoring, recording function. Multi-language user interface design. Strong scalability to easily achieve a variety of system linkage control. ALPR(Automatic Licence Plate Recognition) (Optional) Multiple devices networked control functions(Optional) |
General Specifications |
|
| Technical parameters | Embedded screening parts: Camera: Sensor: line scan CCD Resolution: 5000*2048 pixels Power Supply: 24VDC, 3A Illumination: LED, Power Supply: 24VDC,150W Size: 1200mm x 350mm Storaging Temperature Range -25 degree to +70 degree Controller: |
System host |
|
| System host | Brand: Grantech (UFO6377H-SP1-953) CPU: Intel® Core(TM) 2 Duo CPU P8600@2.4GHz or higher Memory:2G( optional 4G） Graphics：Inter(R) Gen 5.0 Integrated Graphics Engine Hard Disk：SATA2 Hard Disk 500G Dual LAN (At least one Intel Gigabit) USB2.0 (Up to 4 pieces) Monitor: 22inch LCD, resolution up to 1920*1080 Scene Video Record: 4 channel, Compression algorithm of scene video: H264 |
